Magnus GTR VR38 Billet Intake Manifold



The all Billet 18 Injector Manifold was developed while we were campaigning for the world record EKanoo Racing R35 GTR 2015 – 2017 Seasons of the BDRC, where the car was half a second ahead of its competitors at the time, producing well over 2600 hp.  Fuel demands and airflow requirements reaching over 90 psi of boost pressure began to show uneven cylinder distribution in other manifolds.  Using the same CFD technology and over 20 years experience in designing intake manifolds with less than 1 percent differentiation between cylinders, we were able to apply this knowledge to develop the absolute best flowing intake manifold on the market.

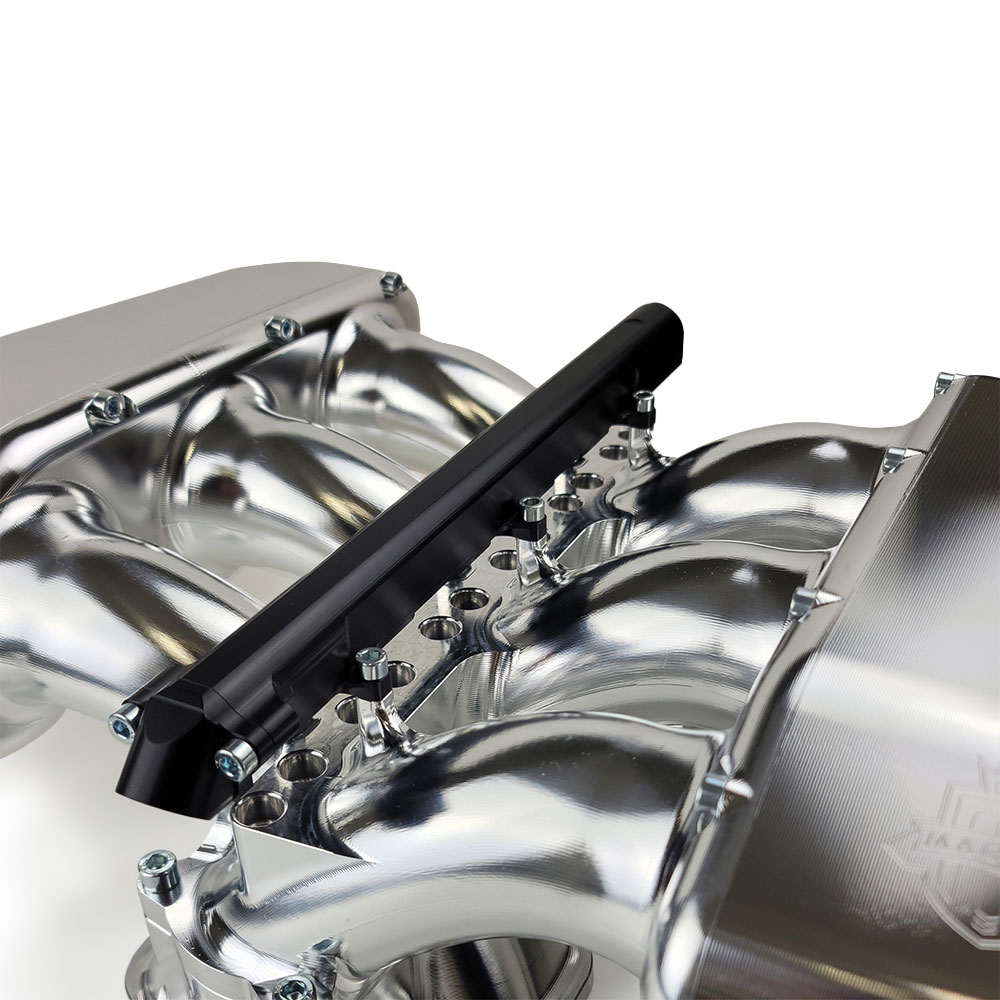

While in design we addressed the fuel demand issue and made a -10 fuel rail that was adequate to flow over 25,000 cc/min of fuel, while again running through complex CFD simulations.   The fuel rail was carefully modeled to not have fuel starvation or pulsation issues as with current -6 fuel rails.  High Flow injectors required a redesign of the rail which was scaled up to run -10 to accommodate up to a 4000hp fuel system.

Currently this intake manifold has proven itself to be able to run over 214 mph and produce a record shattering 2700hp on the chassis dyno of T1 Racing Development.  Available in the anodized color of your choice, also available with dummy injectors for future fuel use as your fuel demands grow.

Currently used in some of the Top GTR R35 street and race machines, because of its versatility with dual fuel systems.  12 injectors up top and 6 down low allow you to run pump gas and switch to alcohol on high boost seamlessly, allowing the best of both worlds.  Alternatively you may run original size (or larger)  injectors down on the first bank to have a perfect idle quality down to an original 800 RPM, then stage to larger injectors.


  • Choose from 6 injectors, 12 injectors or 18 injectors
  • Removeable O ring sealed Plenum (Plenum Seals up to 400 psi)
  • Constructed with 6061 Billet Aluminum
  • Integrated velocity stacks in the runner
  • Supports up to 18 injectors
  • Each runner flows 735 CFM @ 28″ H2O
  • 6 second proven
  • Proven to 2700+ WHP
  • Dyno proven 75 hp gains over stock intake manifold
  • Available anodized in your choice of colors

Included in Kit

  • 4-piece manifold
  • Fuel Rail – (not included with  MMCINT5005-006)
  • Gasket
  • Mounting Hardware

Part #

MMCINT5005-06   Magnus GTR VR38 Billet Intake Manifold (6 Injector)

MMCINT5005-12    Magnus GTR VR38 Billet Intake Manifold (12 Injector)

MMCINT5005-18    Magnus GTR VR38 Billet Intake Manifold (18 Injector)

Additional information

Weight 70 lbs
Dimensions 36 × 16 × 16 in
GTR VR38 Billet Intake Manifold

6 Injector, 12 Injector (includes 6 Dummy Injectors), 18 Injector
