Magnus 4G63 Adjustable Cam Gears EVO / DSM

Description

Adjustable Cam Gears are used to dial in your camshaft centerlines on your EVO 1-9 or DSM.

Sold Individually.

All of the outer gears are hard anodized to protect against wear.  They also feature engraved graduations from minus 15 degrees to plus 15 degrees.  If you are upgrading to these gears for aesthetic purposes, set the gears to zero degrees as a direct replacement of OEM.

The faceplate’s design is gorgeous while being rigid and lightweight.

Available with different drives and fits perfectly with the Magnus Motorsports Fuel Pump systems for EVO and DSM.



Options

Outer Gear:

1. Black Anodized

2. Clear Anodized (Appears Grey in color)



Face Plate:

1. Raw Aluminum – ready for you to anodize or powder coat (comes with polished bolts)

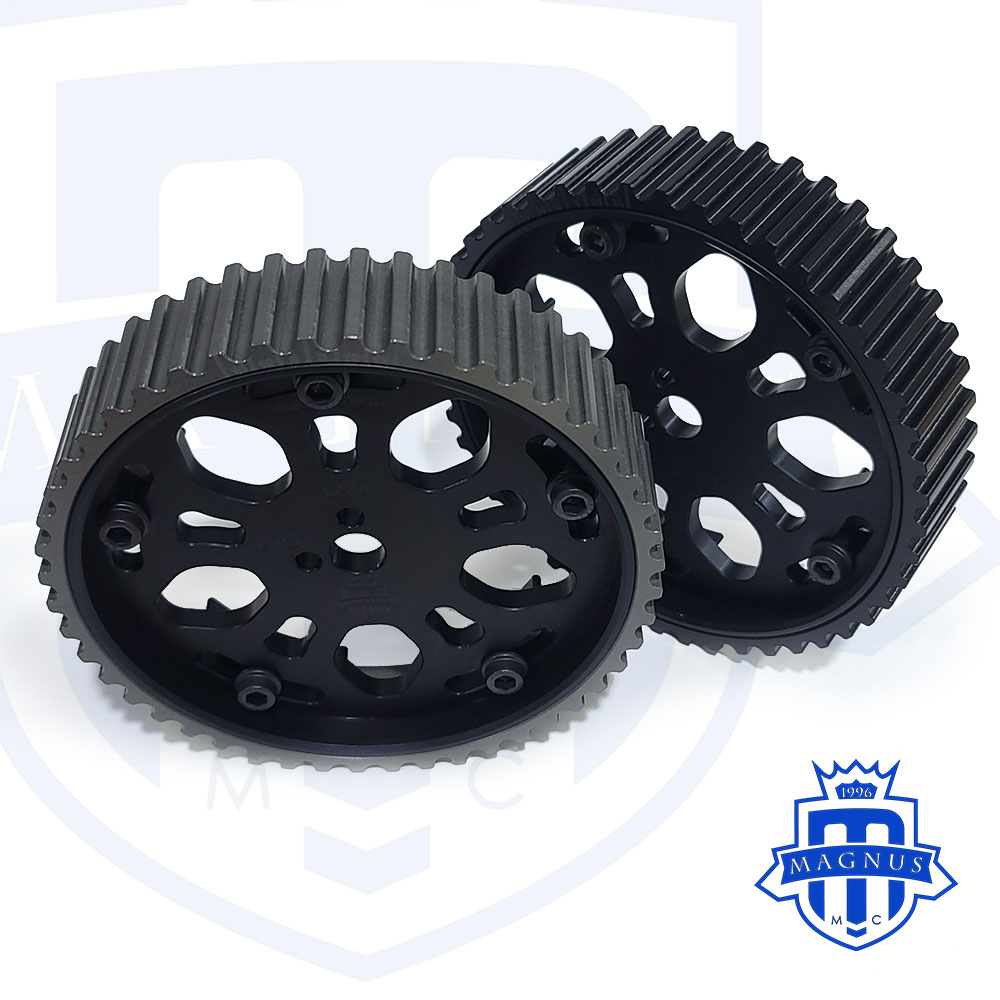

2. Black Anodized – all black for a subdued look that makes a statement (comes with black bolts)

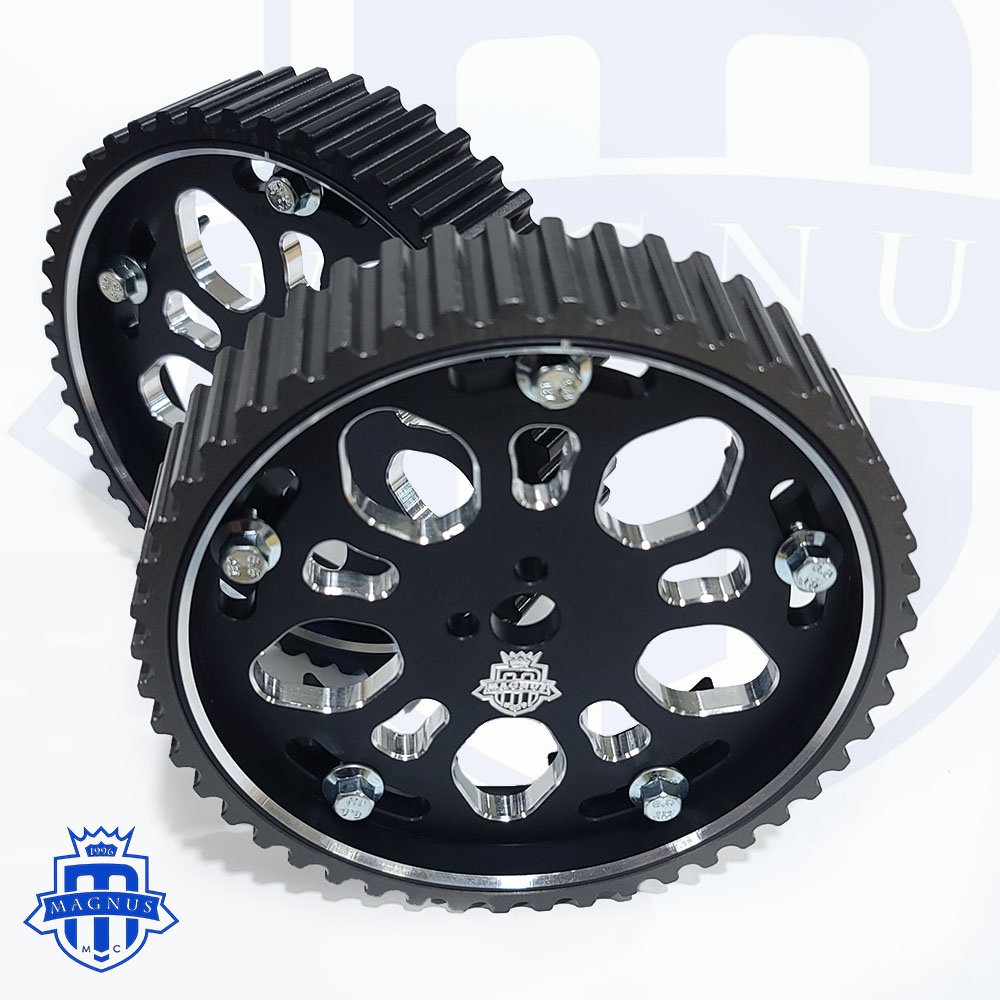

3. Black Anodized with Polished Aluminum Chamfers – after anodizing the part returns to our 5 Axis CNC to have the chamfers and inner dimensions machined to a polished finish (comes with polished bolts)

4. Blue Anodized with Polished Aluminum Chamfers (comes with polished bolts)

5. Green Anodized with Polished Aluminum Chamfers (comes with polished bolts)

6. Red Anodized with Polished Aluminum Chamfers (comes with polished bolts)

7. Purple Anodized with Polished Aluminum Chamfers (comes with polished bolts)



Part Number:

MMCENG1015-001 – Magnus EVO DSM Adjustable Cam Gear – Raw Aluminum Face Plate MMCENG1016 with Black Outer Gear MMCENG1017

MMCENG1015-002 – Magnus EVO DSM Adjustable Cam Gear – Raw Aluminum Face Plate MMCENG1016 with Gray Outer Gear MMCENG1017

MMCENG1015-003 – Magnus EVO DSM Adjustable Cam Gear – Black Anodized Face Plate MMCENG1016 with Black Outer Gear MMCENG1017

MMCENG1015-004 – Magnus EVO DSM Adjustable Cam Gear – Black Anodized Face Plate MMCENG1016 with Gray Outer Gear MMCENG1017

MMCENG1015-005 – Magnus EVO DSM Adjustable Cam Gear – Black Anodized Polished Chamfer Face Plate MMCENG1016 with Black Outer Gear MMCENG1017

MMCENG1015-006 – Magnus EVO DSM Adjustable Cam Gear – Black Anodized Polished Chamfer Face Plate MMCENG1016 with Grey Outer Gear MMCENG1017

MMCENG1015-007 – Magnus EVO DSM Adjustable Cam Gear – Blue Anodized Polished Chamfer Face Plate MMCENG1016 with Black Outer Gear MMCENG1017

MMCENG1015-008 – Magnus EVO DSM Adjustable Cam Gear – Green Anodized Polished Chamfer Face Plate MMCENG1016 with Black Outer Gear MMCENG1017

MMCENG1015-009 – Magnus EVO DSM Adjustable Cam Gear – Red Anodized Polished Chamfer Face Plate MMCENG1016 with Black Outer Gear MMCENG1017

MMCENG1015-010 – Magnus EVO DSM Adjustable Cam Gear – Purple Anodized Polished Chamfer Face Plate MMCENG1016 with Black Outer Gear MMCENG1017
