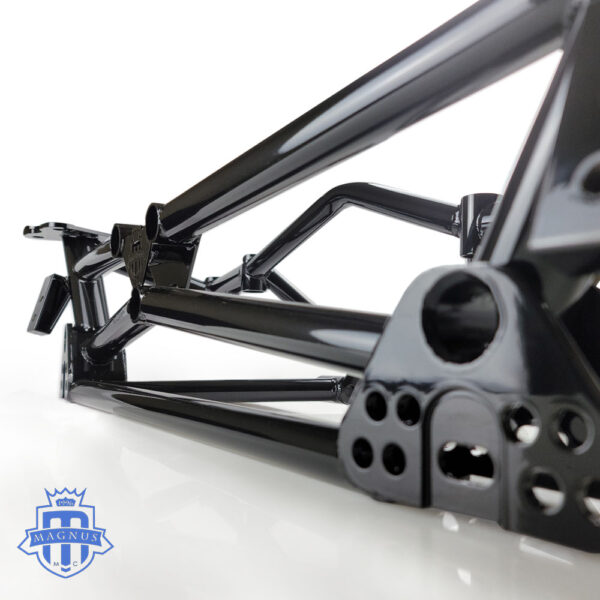

Magnus Lightweight Chromoly rear subframe for EVO 7 – 9 CT9A

$3,195.00$3,750.00

Description

** These Sub-Frames are made to order and may experience extended wait times. Email info@magnusmotorsports.com prior to ordering online for details about securing a spot on the waiting list.



The Magnus Mitsubishi EVO 7 – 8 – 9 CT9A Lightweight Chromoly rear subframe takes over 35 lbs off the back end of your Mitsubishi while strengthening and stiffening up your rear suspension.  GREAT for a Road, Rally, and Drag high performance applications. Replacing the OEM 30kg unit with our 6kg unit.


Benefits

  • Removes weight
  • Increases torsional stiffness
  • Positively locates rear differential to help stop axle breakage and annoying thump on shifts.
  • Original eccentric Camber adjustment also with extra mounting holes for Magnus Spec control arms (short for Drag race less camber on compression, Long for Road race, more camber on compression)
  • Adjustable lower control arm points allow you to lengthen or shorten your lower control arm for more camber (road race) or less camber (drag race) throughout the whole range of suspension travel not just at ride height.

Features

  • Total Weight 6 kg’s. Replaces 30 kg unit.
  • All units have sway bar mounting points for factory sway bar mounts
  • Positively locates rear differential
  • Original eccentric Camber adjustment also with extra mounting holes for Magnus Spec control arms (short for Drag race less camber on compression, Long for Road race, more camber on compression)
  • Adjustable lower control arm points allow you to lengthen or shorten your lower control arm for more camber (road race) or less camber (drag race)

Applications

  • Evo 7-9

Options

  • Powder Coated Finish
  • Mounting for OEM or 3000GT rear Diff

Part# MMCSUP1002 Magnus Lightweight Chromoly rear subframe for EVO 7 – 9 CT9A

Additional information

Weight 50 lbs
Dimensions 45 × 30 × 30 in
Rear End

CT9A EVO 7 – 9 Stock Rear End, CT9A EVO 7 – 9 3000GT Rear End
