Magnus McLaren Engine Assembly Tools

Description

Magnus Motorsports have spent the last few years developing our McLaren engine program.  Our builders have been working on the McLaren short blocks to increase reliable loads on the motors.  In tearing down the assembly, performing autopsy’s on failure points and reassembling with improved replacements, we have developed and engineered all of our own professional engine disassembly and assembly tools to complement the professional engine machinists toolbox.  Without these tools, you simply cannot perform assembly or disassembly of the McLaren M838T and M840T motors accurately and without damage.

Magnus McLaren Crankshaft Main Tool M838T M840T (Retaining Bridge)

Sold as a pair:  Magnus Retaining bridge to hold the crankshaft in any position, and allow crankshaft rotation when mounting pistons and rods to the block.

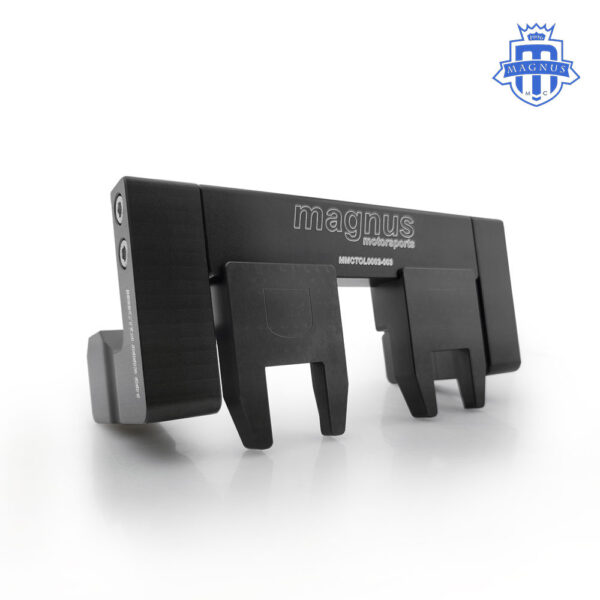

Magnus McLaren Camshaft Timing Tool

Magnus Motorsports Camshaft timing tool, is used to set camshaft timing on McLaren engine.  The engine timing tool for M838T and M840T

Magnus McLaren Crankshaft Locking Pin

Crank stopper is used to pin the crankshaft to the 45 degree position for the setting of camshafts.

Magnus McLaren Oil Pump Pulley Puller

Easily remove the oil pump pulley without damaging it

Magnus McLaren Sleeve Puller and Installer

Easily removes and reinstalls Wet engine sleeves as featured in the McLaren engines.

Part #

MMCTOL0001     Magnus McLaren Crankshaft Main Tool M838T M840T

MMCTOL0002     Magnus McLaren Crankshaft Timing Tool

MMCTOL0003    Magnus McLaren Crankshaft Locking Pin

MMCTOL0004     Magnus McLaren Oil Pump Pulley Puller

MMCTOL0006     Magnus McLaren Sleeve Puller and Installer
